for 40x0 Probers (running EG Commander software)

Error Manager reads prober 'error log' files and presents the data in ways to aid analysis.

Error Manager reads the prober error log file ( 'ERR_LOG.RPT' ) from an Electroglas 'EG Commander' prober. This file is located in the subdirectory '\Comander\EG_Root\Machine'. The errors are displayed in a summary view and also a tree view. The original log file is also available for viewing/analysis. The error log may be exported to an Excel spreadsheet for further sorting and review.

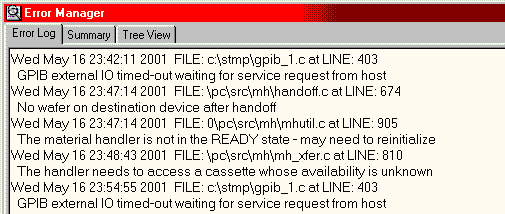

[ Log View ]

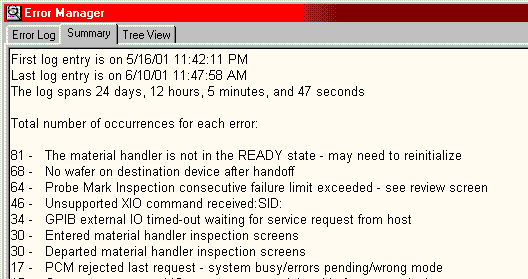

The summary view lists the errors by frequency; the errors which occur the most are listed at the top of the summary. The summary view also lists the date/time of the first and last log entries. [ Summary View ]

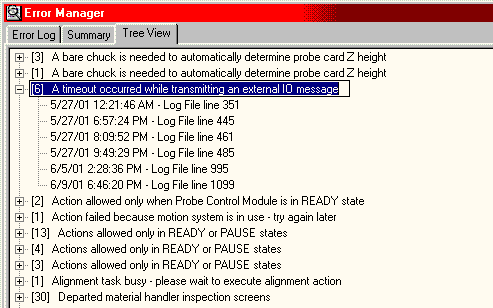

The tree view shows the errors, listed alphabetically by error text message. Clicking on an error 'node' will drop down a list showing the date/time of each occurrence of that error. Clicking on an error occurrence will highlight that line in the 'Log' view.
[ Tree View ]

Right-click the mouse in the 'Tree' view to display or hide the error's source code information.


Copy this file to a subdirectory on your computer, then double-click to unpack the files.

Self-extracting ZIP.
Program developed with Borland Delphi 6; current version compiled with Borland Developer Studio 2006.


v2.20
October 4, 2007
Copyright © 2001, 2006-2007 IdleTime Industries

Revision History:

  v2.20   October 4, 2007
       Reworked Excel export. Excel is no longer required to be installed to create a spreadsheet.
       Database is now cleared at each program execution.

  v2.10   May 19, 2007
       Added facility to export log file to Excel spreadsheet.
       You must have Microsoft Excel installed to utilize this feature.

  v2.00   September 20, 2006
       Program now optionally copies error log into local directory before processing.
       This enables the utility to be run on a Windows-based prober without shutting down EG Commander.
       Also added toggle for prompting for error log location (uses default prober location if disabled).
       Changed program Help file to HTML and added support for that.
       Found WinHelp was not displaying screen captures properly on the prober.
       Added main menu and removed pop-up menus from all but tree view.

  v1.02   September 26, 2001
       Now switches to 'Summary' view after processing of the error log is complete.

  v1.01   September 11, 2001
       If database alias is not found, will now set the alias to point to program directory.
       If this is unsuccessful, then user will be asked to point to location of db files.

  v1.00   June 25, 2001
       Original version.
